Description

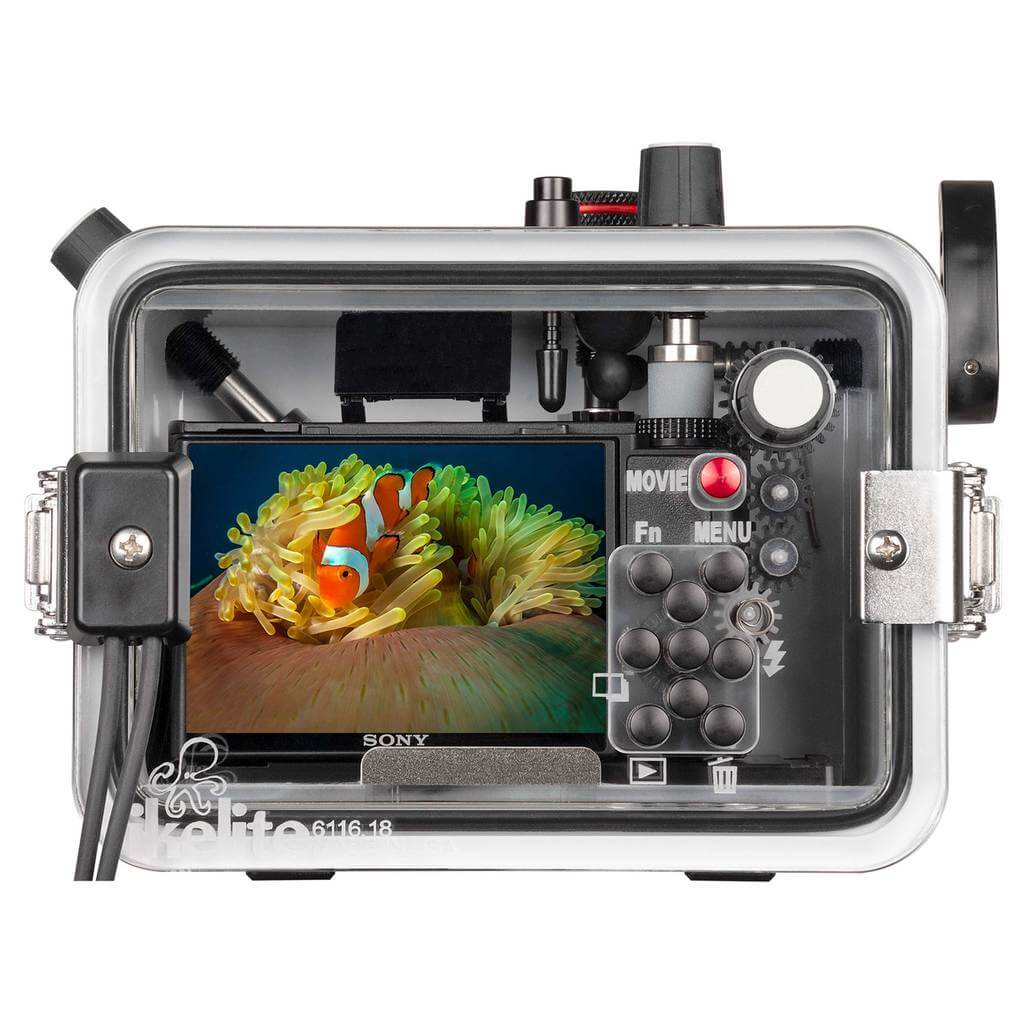

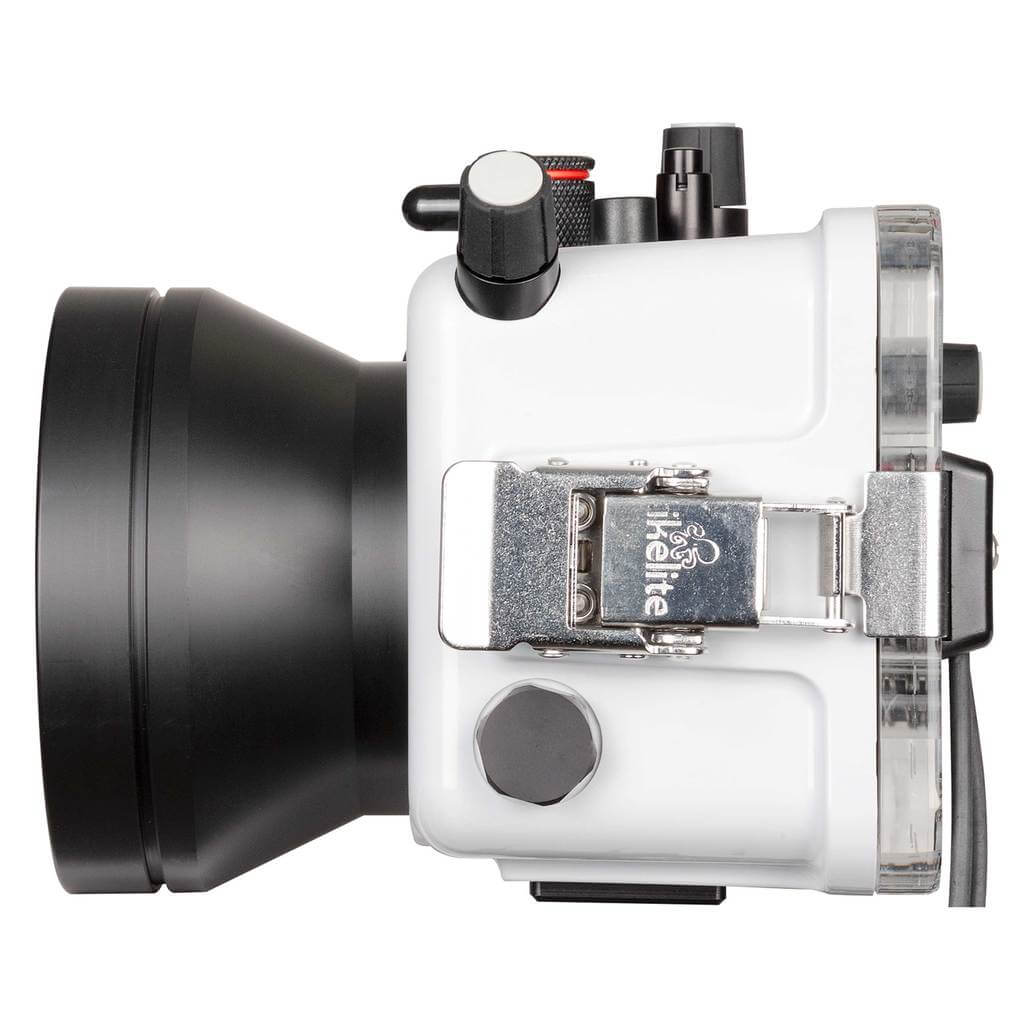

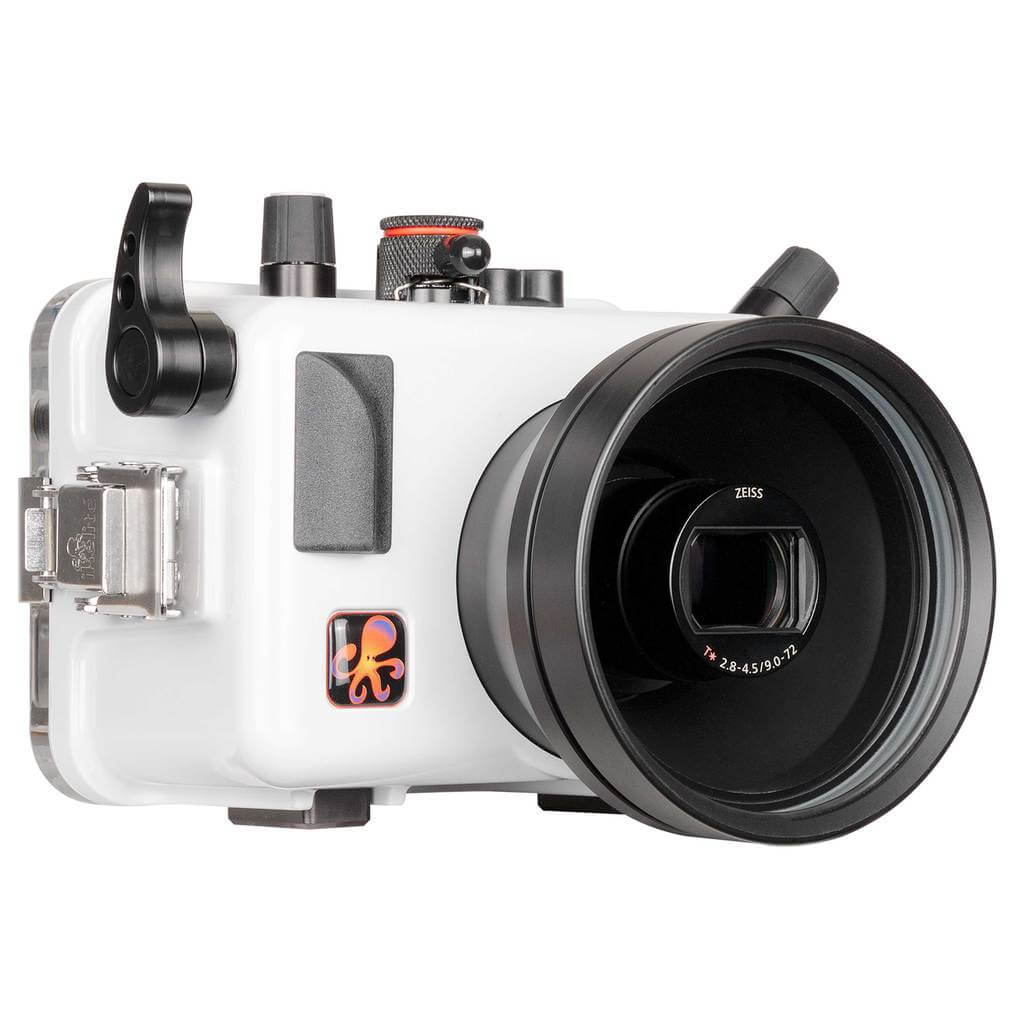

Ikelite 6116.18 Sony Cyber-shot RX100 MkVI & VII Housing

Product Details A full-featured and durable Ikelite underwater housing for Sony Cyber-shot RX100 VI & VII digital cameras. Perfect for scuba, snorkel, surf, pool, and any application in or around the water. Sony Cyber-shot RX100 VI Camera Sony's 2018 model in the huge RX100 series sports an extended, 24-200mm f/2.8-4.5 zoom lens with enhanced image stabilization. Having a longer zoom reach compared to previous RX100 models makes this a great choice for overall travel photography. A large 20MP 1" sensor and incredibly fast autofocus make for great images above and below the surface... plus stunning 4K UHD video recording all in one very compact body. Sony Cyber-shot RX100 VII Camera The 2019 update features a new 20MP stacked-CMOS sensor and Sony's latest autofocus systems borrowed from the A6400 and A9 mirrorless camera models. Video is better too with an enhanced image stabilization mode that combines digital and optical correction. They've also added a built-in intervalometer for shooting timelapse and other creative applications. Construction Ikelite’s ABS-PC blend housing provides strength and corrosion-free performance year with minimal maintenance. The specially formulated colour deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light colour provides superior contrast for an enhanced view of the camera, LCD screen, and O-ring seal. Ikelite products are designed, built and tested in the USA. They use locally sourced, top-grade materials. Ikelite housings are built by hand and individually tested for fit, function and waterproof integrity. Ikelite back their products with over 50 years of experience and service within the dive industry. Ergonomics A slide-in, front-loading camera mount makes this housing a breeze to set up and shoot. Controls are provided for all important camera functions including front and rear control dials. Controls are placed in an intuitive position and designed for comfortable access whether you're holding the housing or an add-on handle. A sensitive shutter lever makes it easy to half-depress the trigger for focusing and metering. Rear push-button controls are laser engraved for identification with a new bright red push button for the video record start/stop. The camera's large LCD screen can be seen clearly through the back of the housing. The screen can be tilted during installation for more comfortable viewing underwater. Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device. Flash Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos underwater. For the best colour and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via a fibre optic sync cord. Two ports are provided for the connection of up to two fibre optic cords. Any Ikelite DS strobe may be connected using the Fibre Optic Converter # 4401.3 and Fibre Optic Cord # 4501. The AF35 strobe is not compatible with this housing. The optional Action Tray II with Left Handle # 2605.04 and Action Tray II Extension with Right Handle # 2605.05 provide a balanced grip and are the perfect platform for adding lighting accessories. The Action Tray II mounts to the bottom of the housing with two 1/4-20 threaded screws for secure and rotation-free use. Our uniquely curved grips are rubberized for a comfortable grip and provide a quick-release mechanism for adding and removing light arms. Zoom, super macro, and semi-wide angle The standard 3.9" diameter optical glass port accommodates the camera's full 24-200mm zoom range underwater. Add the press-fit Macro Adapter # 9306.82 with any 67mm threaded macro wet lens for incredibly super macro photography. Compatible Macro wet lenses include but are not limited to AOI, I-Dive, INON UCL-165, Subsee Magnifier, Saga close up lenses, Nauticam CMC-1, and others. The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, vignetting, or weight typically associated with an external wide-angle wet lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port. 3.9" diameter colour filters press directly onto the front of the standard lens port. Ikelite offer colour filters for Tropical Blue Water # 6441.46, Green Water # 6441.86, and a Yellow Barrier Filter # 6441.16 for fluorescence photography. Optional 6" dry dome The DC3 6" Dome Port # 6403 offers the best of everything: wide-angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides a sharp 24mm wide-angle image and is perfect for split shots (half-in, half-out of the water). Approximately 3/4 of the camera's zoom range is usable behind the dome and macro images can be captured with the dome installed. Optional wide-angle port The optional Wide-Angle Port M67 for Sony RX100 VI # 9306.02 can be used in place of the housing's standard port for use of 67mm threaded external wide-angle wet lenses. This port has been optimized to provide the best combination of wide-angle and macro photography. The shorter port length accommodates an effective zoom range of 24-70mm. This port is optimized for use with wide-angle wet lenses designed for the 28mm equivalent focal length, including the INON UWL-H100, Nauticam WWL-1, and others.  Some vignetting (dark shadows around the edges of the image will be present at wider focal lengths. We recommend zooming to eliminate vignetting or cropping your images in post-production. The front of the port also accepts 67mm threaded macro wet lenses by AOI, I-Dive, Aquatica, INON, Subsee, Saga, Nauticam, and others. The standard lens port is removed and the Wide-Angle Port M67 simply threads into the front of the housing for quick and easy installation. The camera cannot be zoomed past 70mm with this port attached. The camera will shut down if zoomed past this point. Sealing and Vacuum Testing There is no greater assurance than being able to see your camera and O-ring seal through the back of the housing. Our signature open-groove design suspends the rear O-ring in a natural position that is easier to maintain and more reliable than forcing the O-ring into a channel. Once the housing is closed you can see the O-ring form a solid, waterproof seal. A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A hand pump with a gauge allows you to draw a vacuum on the housing to simulate water pressure and check for leaks prior to entering the water. Every unit is water pressure tested to 60m (200 feet) before it leaves Ikelite's facility in Indianapolis.

Compatibility

Older RX100 Mark I, II, III, IV, and V cameras are not usable in this housing due to differences in lens and control placement. The Sony AG-R2 Attachment Grip is not compatible with this product. Specifications

• 60m (200 ft) depth rating
• Controls for all camera functions except Flash switch and Viewfinder switch; camera's built-in flash may be extended during installation
• Slightly negative buoyancy in freshwater
• 1/4-20 threaded tray mounting with 76mm (3") spacing
• Weighs 1270g (2.8 lb)
• 155 x 130 x 173mm (6.1 x 5.1 x 6.8")
• 3.9" diameter glass lens port
• 2-year limited warranty

In the Box

• Housing
• Rear o-ring # 0109
• Port cover # 0200.08
• Silicone lubricant # 5020
