Description

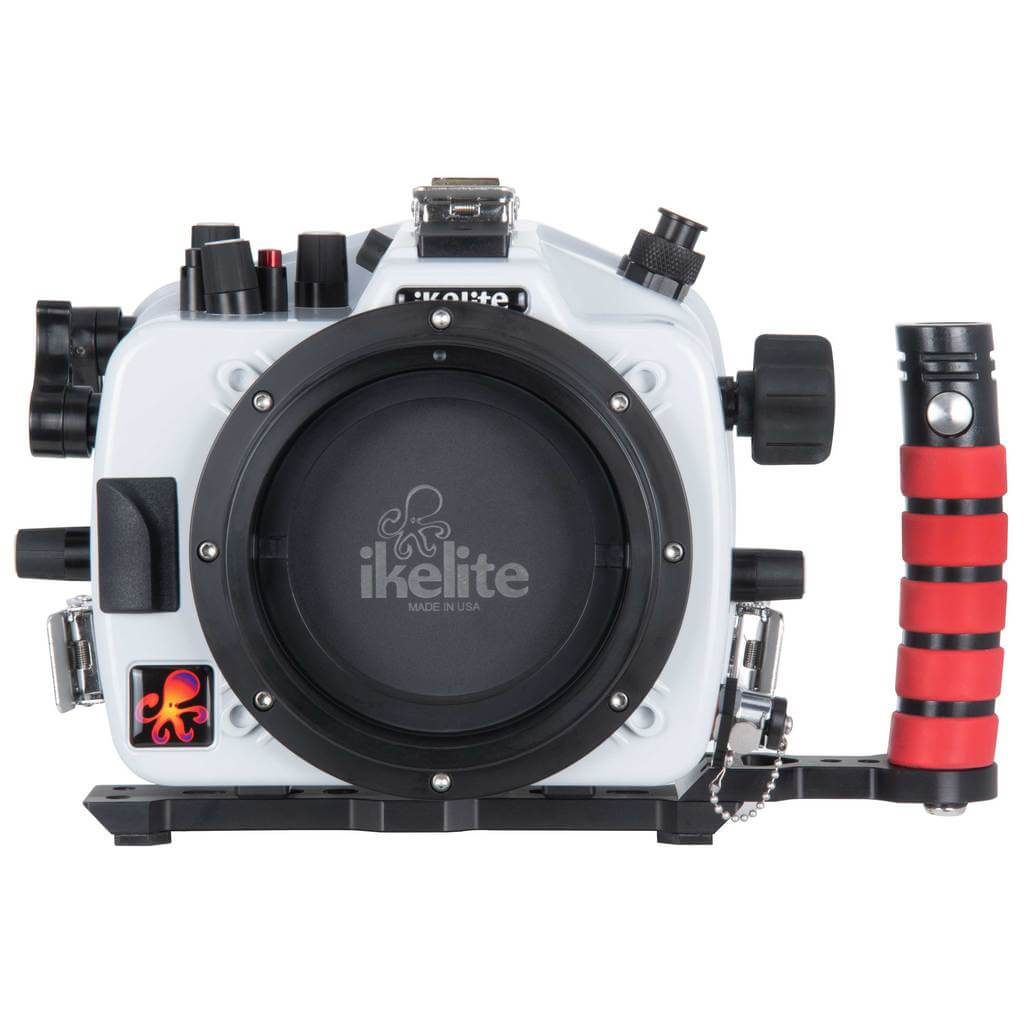

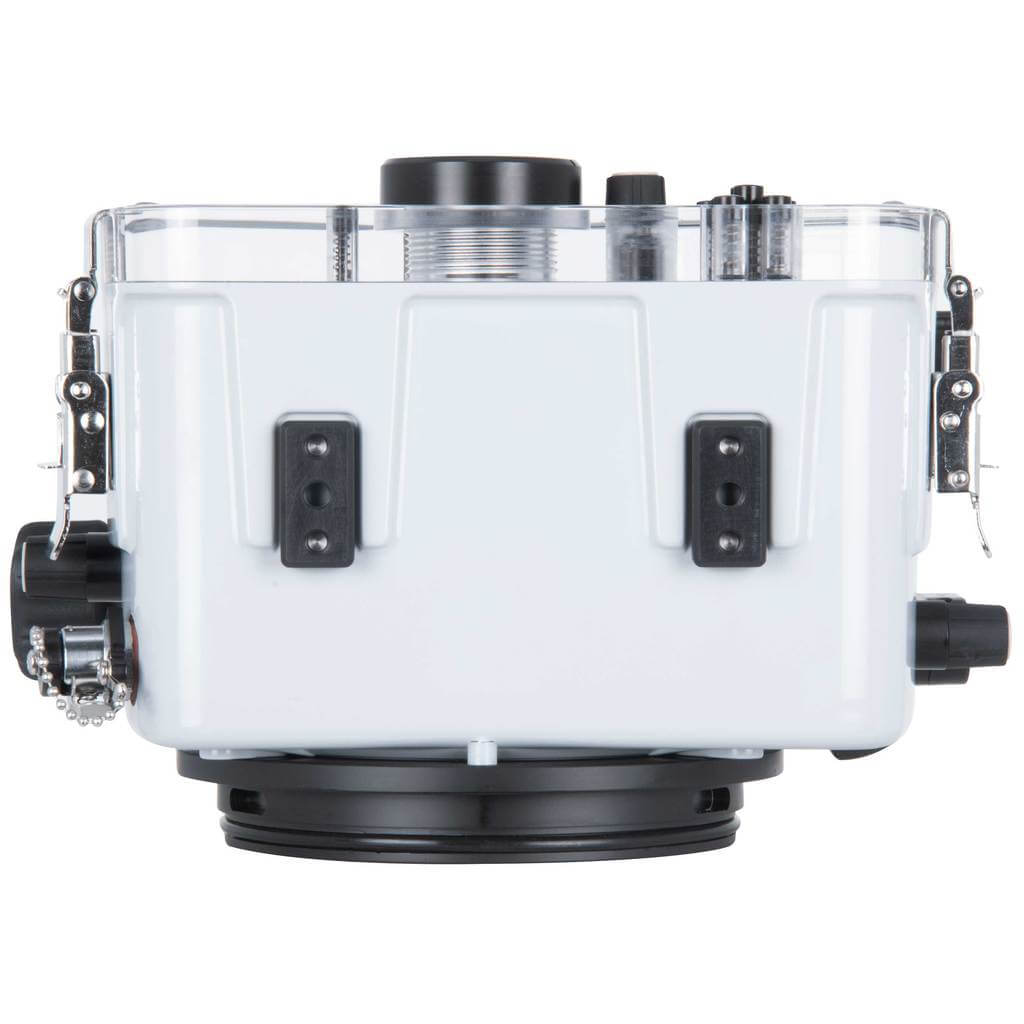

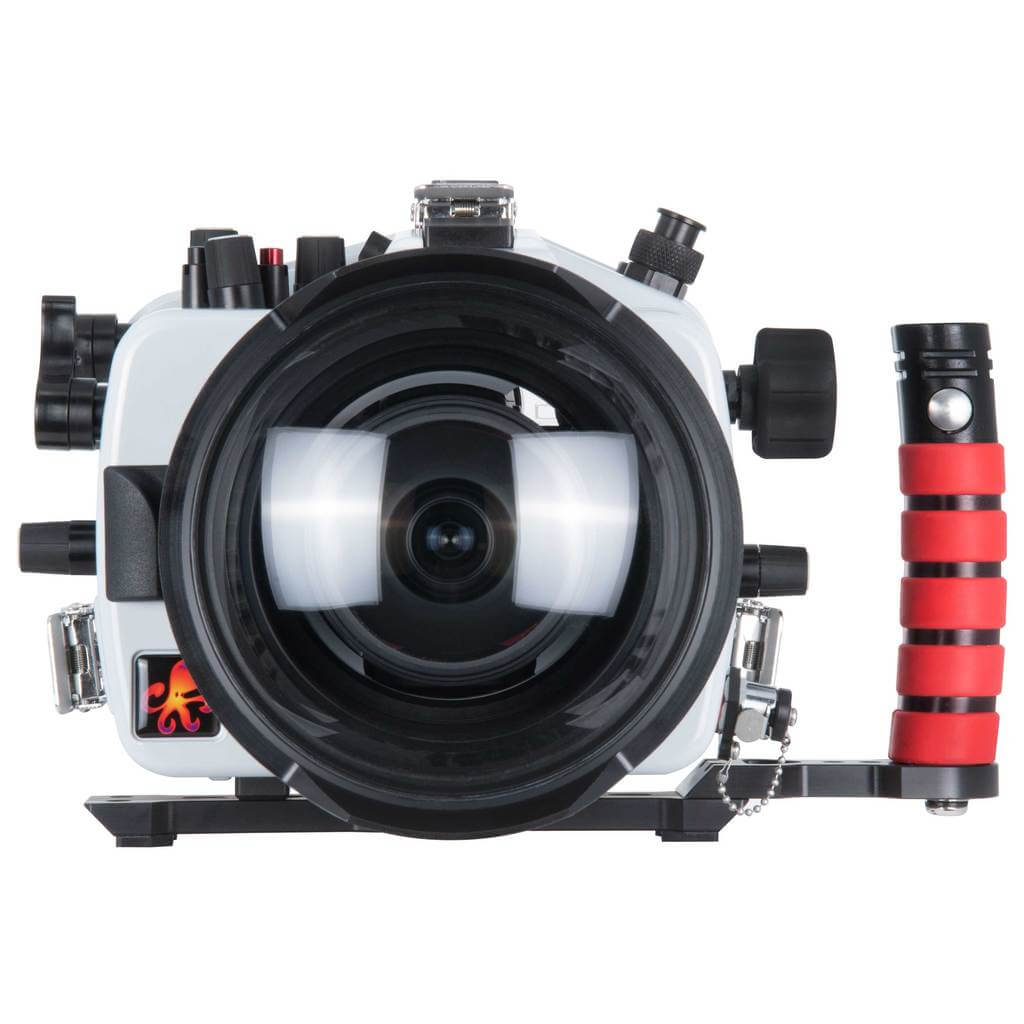

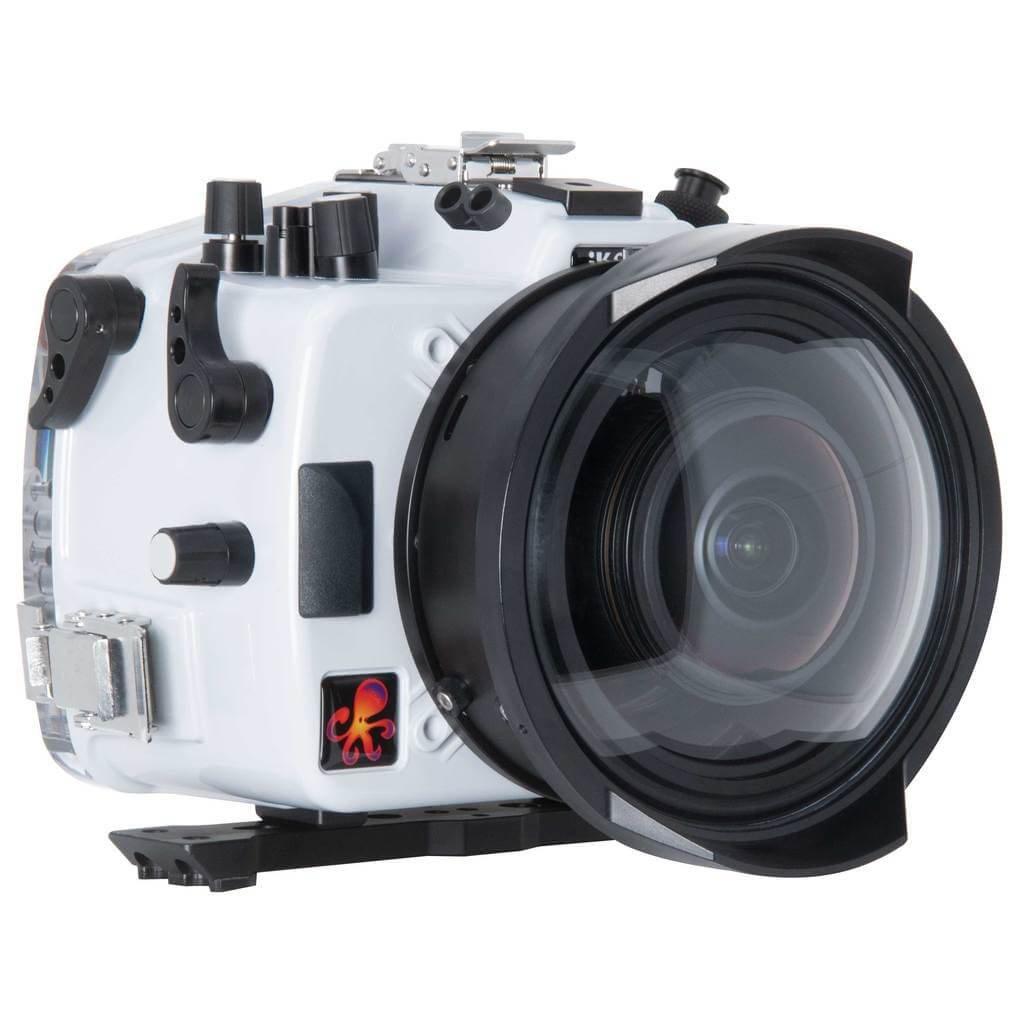

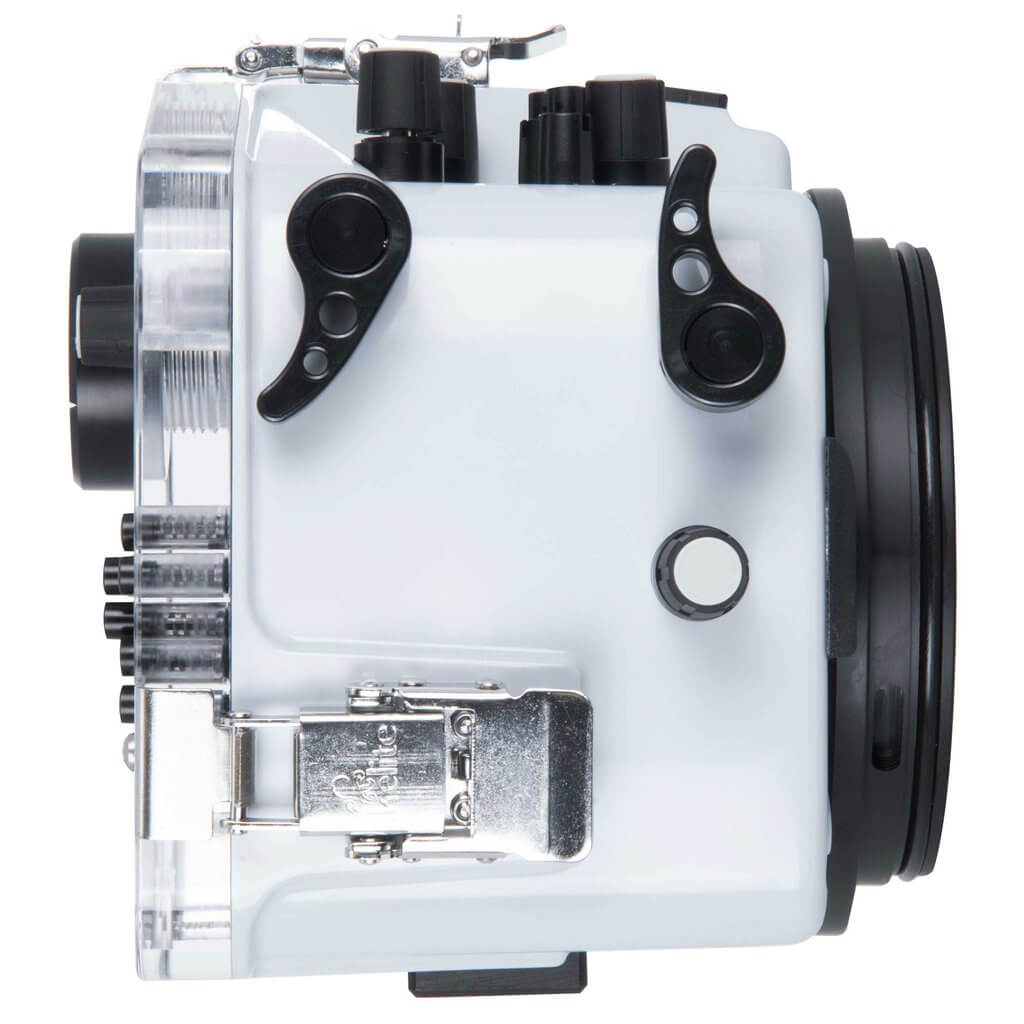

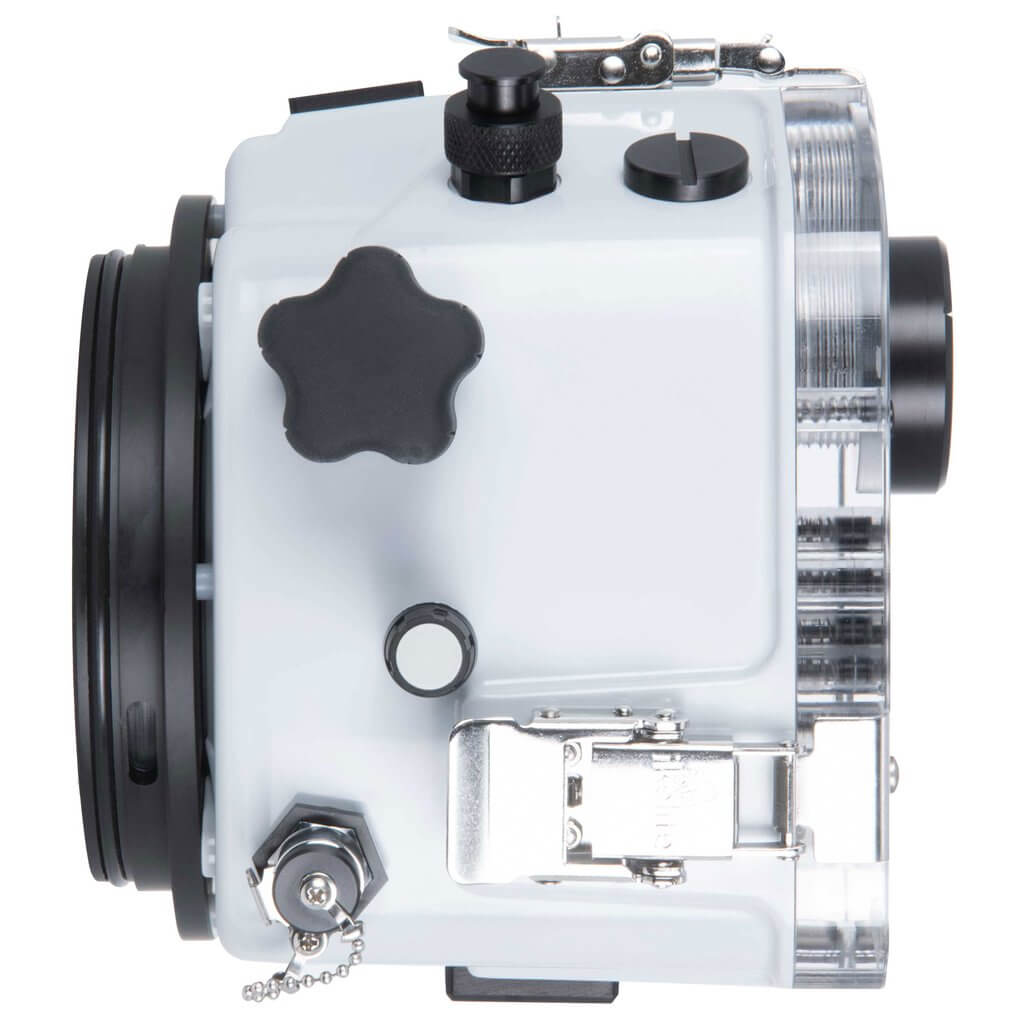

Ikelite 71065 200DL Housing for Nikon Z50 Mirrorless Cameras

A full-featured and durable waterproof housing for Nikon Z50 mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included. Nikon Z50 Mirrorless Cameras The little brother to Nikon's Z6 and Z7 full-frame mirrorless cameras, the Z50 features a 20.9 megapixel APS-C (DX-format) sensor. It records UHD 4K/30p video using the full width of its sensor. A bright 2.36M-dot OLED viewfinder provides a good view for both composition and image review. The camera body weighs in at just under 450 g (1 pound) and accepts both newer Z-mount lenses and F-mount lenses using the FTZ adapter. The camera's CIPA battery life is 320 shots using the rear LCD or 280 shots using the electronic viewfinder (EVF). Lens Ports This housing features Ikelite’s robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease. Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine-tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears are sold separately. Confidence The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. Ikelite have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Three double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes. Vacuum Testing A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls. The optional Vacuum Pump with Gauge # 47011 allows you to draw a vacuum on the housing to check for leaks prior to entering the water. Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing in rough surf. M16 Accessory Port The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads. TTL Exposure This housing supports your choice of shooting with manual strobe exposure or adding a TTL converter depending on your application. The flash bulkhead is located on the top of the case to alleviate strain on the sync cord. You can enjoy the fastest and most accurate TTL exposure on the market by adding the DL1 DS Link TTL Converter # 46056 and a compatible Ikelite DS strobe. The DL1 supports rear curtain synchronization and exposure compensation can be added or subtracted in the camera. Reliable locking connectors between the hotshoe and bulkhead make it easy to install the TTL hotshoe or carry backup parts when travelling to remote locations. Built-in Flash The camera's built-in flash may be used to trigger external fibre optic strobes. Two fibre optic ports are provided on the top of the housing for the attachment of compatible fibre optic cords (see compatibility information below). The built-in flash is not usable for lighting a subject underwater. Ergonomics Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AE-L/AF-L button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Trigger Extension # 4077.93 for perfect spacing when using a right-hand handle. The rotating controls are all operated intuitively via premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left-hand stays on the handle. Stainless steel, direct-drive rotating controls are virtually fail-safe and user-serviceable and adjustable in a pinch. All rear camera buttons are accessible by smooth action, hard-anodized aluminium push buttons for reliable performance and easy maintenance. These controls are clearly labelled by laser engraving on the back of the housing that never fades or falls off. Set-Up The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface. Viewfinders The included SuperEye Viewfinder provides an enhanced view of the camera's electronic viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder # 6890.2 or 45° Magnified Viewfinder (Type 3) # 6891.3. Handling and Travel The housing, tray, and handles have been optimized to reduce weight while maintaining strength and durability. The Right-Hand Quick Release Handle # 4077.02 (sold separately) can be added or removed depending on your needs. The precision-machined aluminium base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories. The base and handle can be quickly removed when breaking down your system for travel. A 1/4-20 threaded mounting point is located front and centre on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or GoPro camera. If you're shooting with two strobes or lighting arms, then an Aluminium Top Handle # 4080.08 can be added to carry to and from the dive site. The rigid aluminium version provides additional mounting points for lighting and accessories. Durability and Corrosion-Free Performance The ABS-PC blend housing provides strength and corrosion-free performance year with minimal maintenance. ABS-PC is lighter than aluminium for convenience during travel and less drag underwater. The specially formulated colour deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light colour provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal. Made in USA Ikelite products are designed, built and tested in the USA. Ikelite uses locally sourced, top-grade materials. These housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 60m (200 feet). Ikelite back their products with over 50 years of experience and the best reputation for service within the dive industry. Camera Compatibility This housing is only compatible with Nikon Z50 cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories. Differences in lens and control placement prevent other Nikon camera models from being used in or adapted to this housing. Ikelite is not aware of any other models which may be used in or adapted to this particular housing. Ikelite DS Strobe Compatibility Any Ikelite DS strobe may be used in manual exposure modes by attaching one or two with a compatible electrical sync cord. Current model DS strobes may be used in TTL exposure mode by adding the optional DL1 DS Link TTL Converter and an electrical sync cord. Non-Ikelite Strobe Compatibility SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off a hard-wired strobe. Ikelite Non-Digital Strobe Compatibility Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes. Fibre Optic Compatibility Strobes with a fibre optic connection can be triggered using a compatible fibre optic cord. Ikelite DS strobes may be triggered in manual flash exposure settings using a Fibre Optic Converter #4401.3 and Fibre Optic Cord #4501. The fibre optic ports accept most cords featuring a standard Ikelite/SEA&SEA/Olympus-type fibre optic connection. Remote Triggering Compatibility Strobes with remote slave capabilities may be triggered from a flash attached to the housing by an electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405 or the Water Wizard system (manufactured and sold by Aquatica). Specifications

• 60m (200 ft) Depth rating
• Compatible with DL system lens ports
• Controls are provided for all camera functions except: Fn1, Fn2, Flash pop-up, Dioptre adjustment dial, and Touchscreen;
• 1/4-20 Threaded base mounts with 76mm (3.5") spacing
• Slightly positive buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port
• Housing 2165g (4.77 lb)
• Tray with left handle 312g (11 oz)
• 229 x 178 x 159 mm (9 x 7 x 6.25 inches)
• Vacuum valve included (pump sold separately)
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for the reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
• ABS-PC construction is fundamentally corrosion-resistant
• Made in the USA; Individually inspected for fit and water pressure tested to depth
• 2 year limited warranty

In the Box

• Housing
• Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• .050" Hex Key # 0945.11
• 1/16" Hex Key # 0945.16
• Silicone Lubricant 1cc Tube

Optional Accessories

• Spare Rear O-Ring #0132.59. Carry a backup in case the original seal becomes damaged.
• Spare Front O-Ring #0132.45. Carry a backup in case the original seal becomes damaged.
• Vacuum Pump with Gauge #47011. Pressurize the housing to check for leaks prior to entering the water.
• Right-Hand Quick Release Handle #4077.02. Makes a double tray for easier handling and a second attachment point for strobes or lights.
• Trigger Extension #4077.93. Recommended if using the Right-Hand Quick Release Handle. Brings shutter or AF-ON lever out to handle for more comfortable use (requires 2 to extend both controls).
• DL1 DS Link TTL Converter #46056 for Fast, Accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.
• 45º Magnified Viewfinder (Type 3) #6891.3 for brighter, larger, and more ergonomic positioning when shooting underwater. Rotates for landscape or portrait shots.

Adding an external strobe or video light enhances your photos' colour and sharpness underwater. If you will be shooting below 13m (45 ft) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source. Read more about strobe options
