Ikelite USB Charging & Data Transfer Bulkhead for Select Underwater Housings

If you're looking for a way to save time and reduce stress during your next dive trip, this is your answer.

Key Features

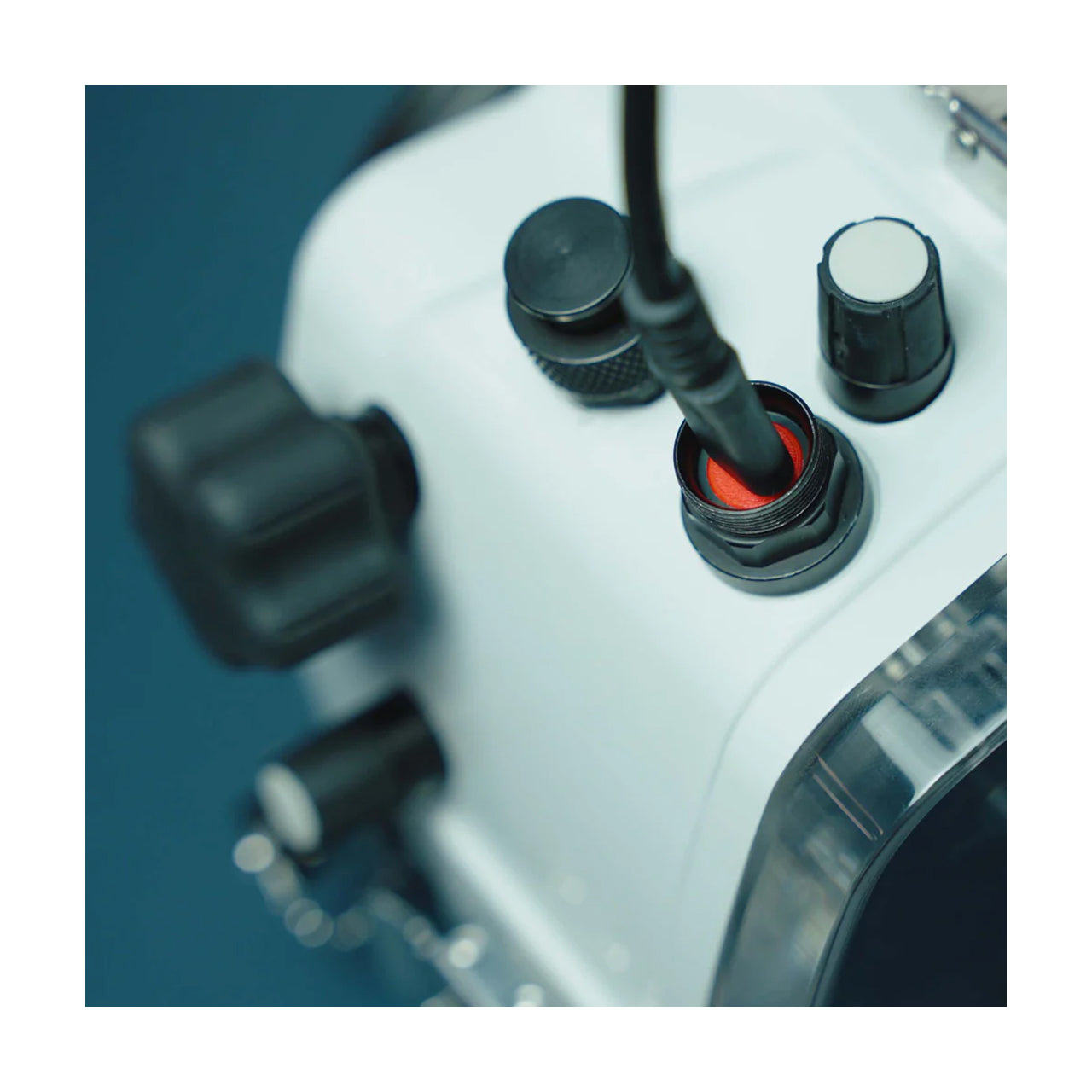

• Installs in the M16 port of select 200DL Underwater Housings.

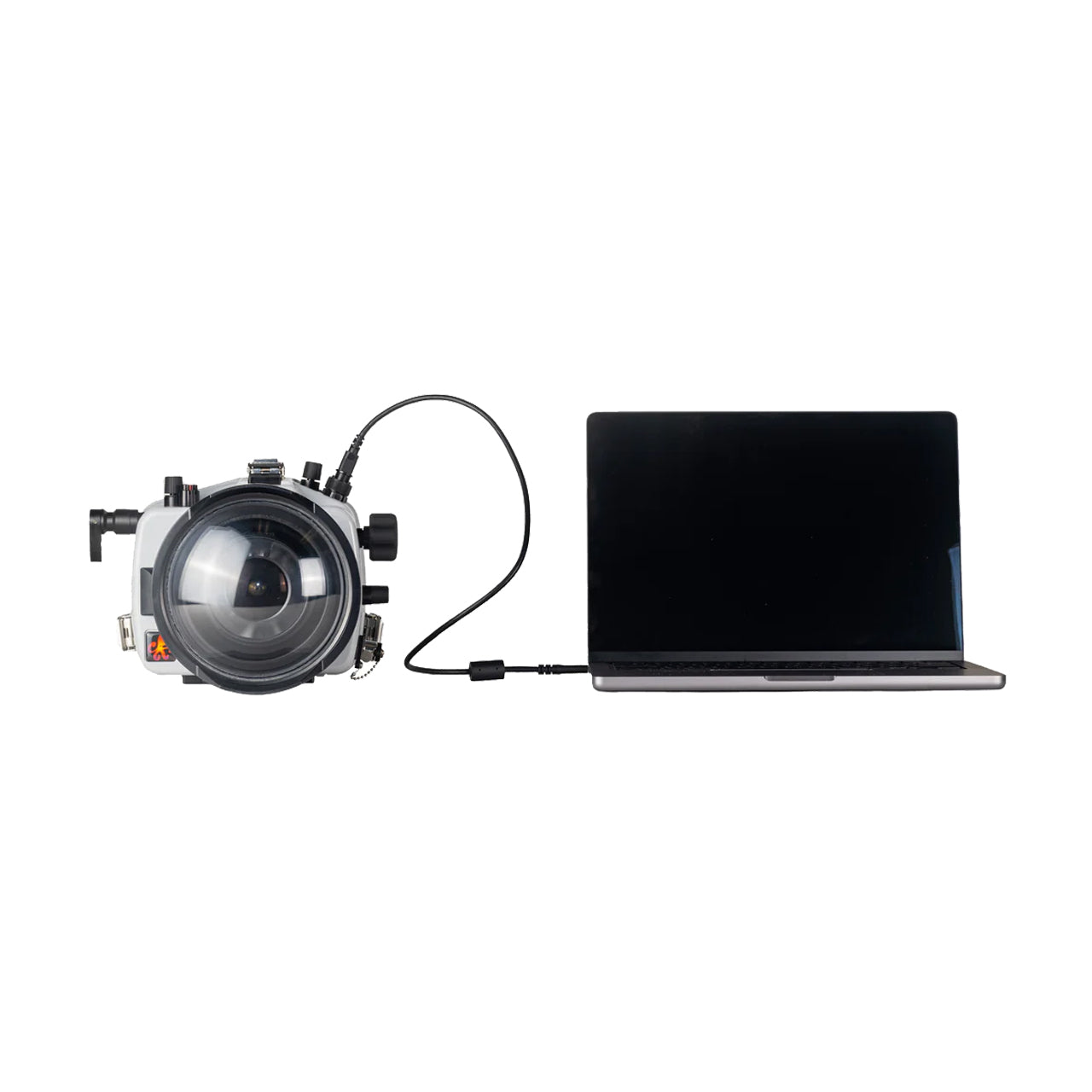

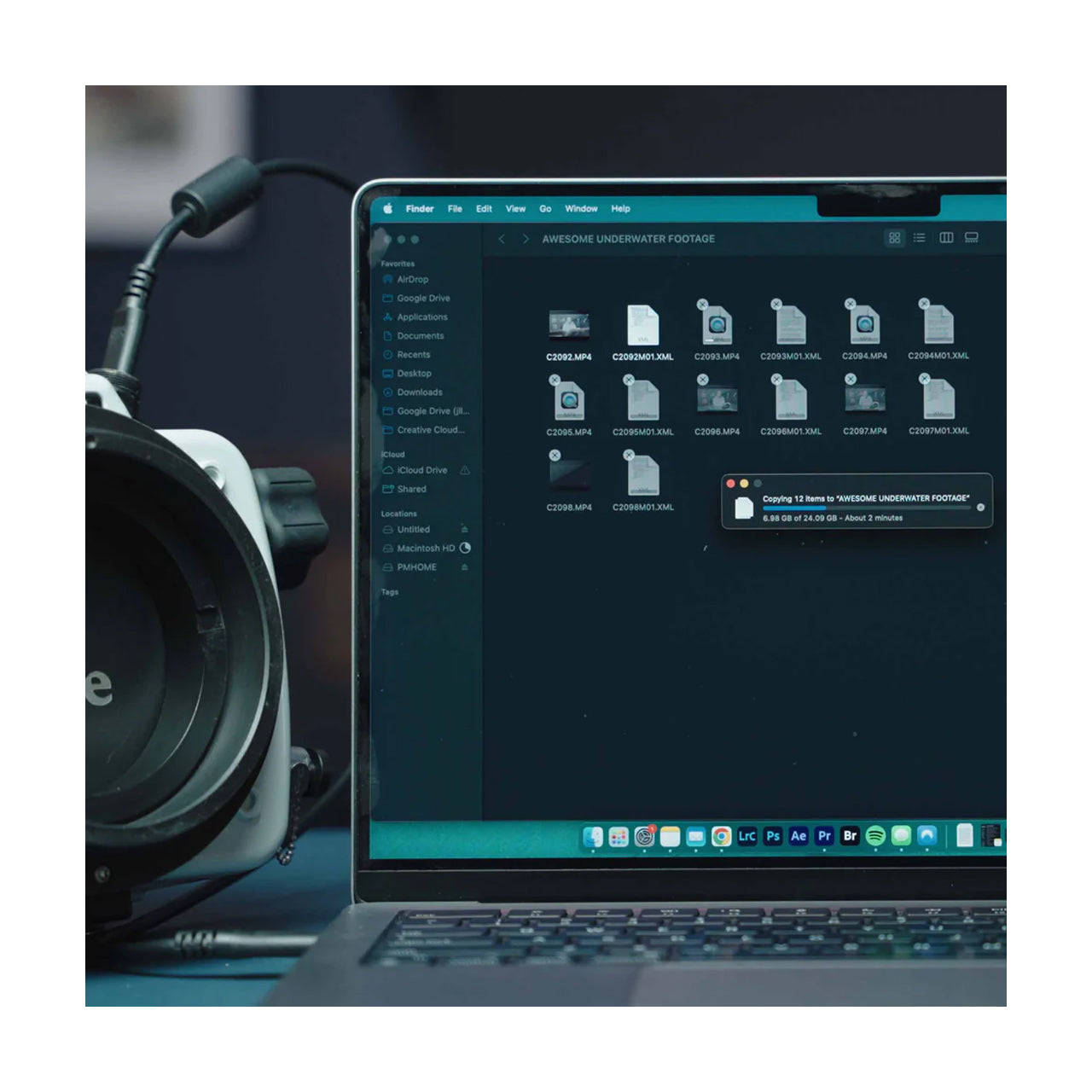

• Connects a high-quality USB-C cable (not included) from outside the housing to charge the camera and offload photos and videos to a laptop.

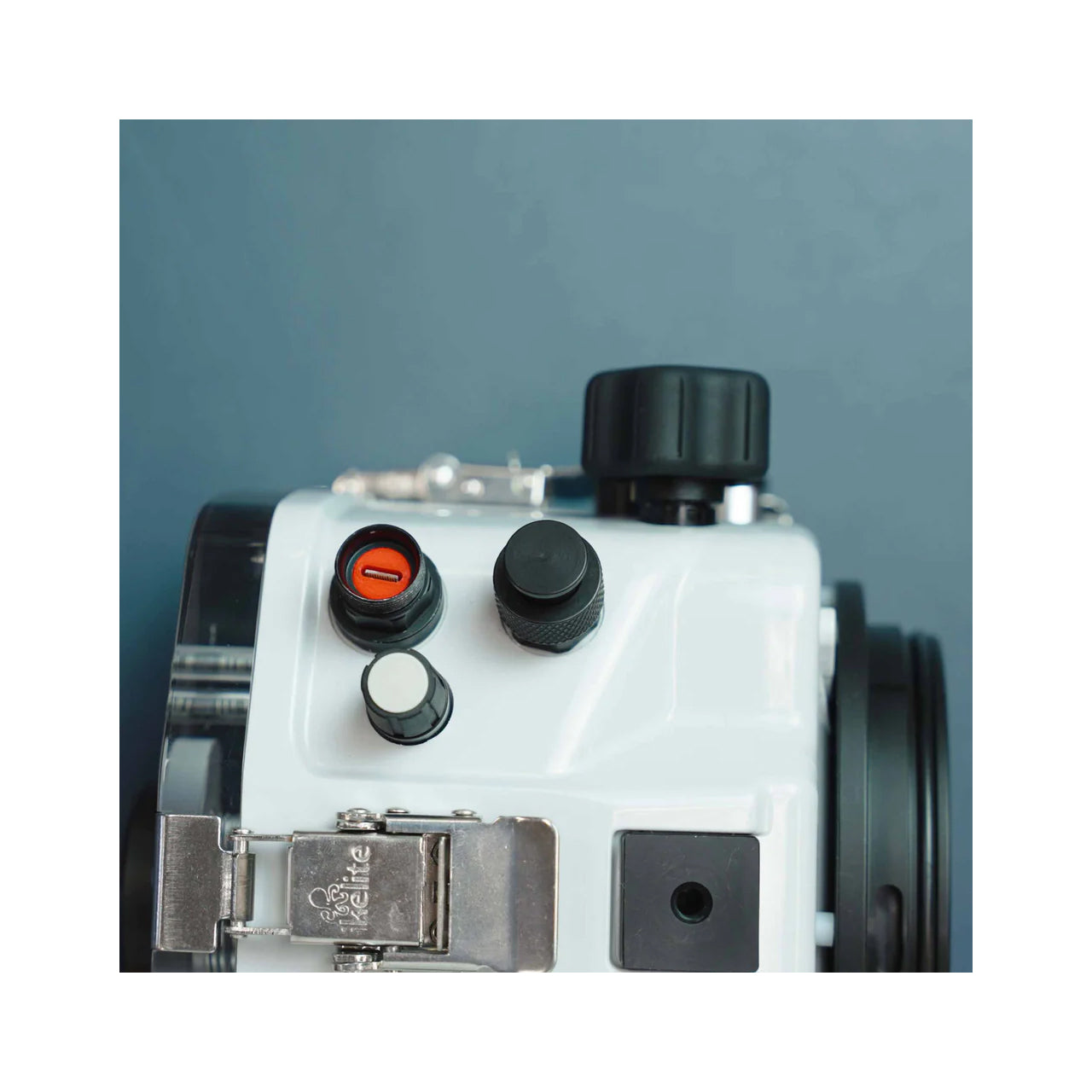

• Replace the waterproof cap when ready to dive.
• Optional Right-Angle USB-C Adapter required for use with select models (see Housing Compatibility section).

Housing Compatibility

Charging has been confirmed with the manufacturer's standard battery. Some cameras, including the Canon R5, prevent USB charging of off-brand batteries (e.g., Promaster).

Compatible with the following 50DL and 200DL Underwater Housings:

• Nikon Z6, Z6 II, Z7, Z7 II # 71063
• Nikon Z5 # 71067
• Nikon Z8 # 71069 *
• Panasonic GH6 # 71313
• Panasonic G9 II # 71317
• Sony a7 III, a7R III # 71473 (serial number 78668 and higher) **
• Sony a7R IV, a9 II # 71474
• Sony a1, a7S III # 71476
• Sony a7C # 71477
• Sony a7 IV, a7R V # 71479
• Sony FX3, FX30 # 71480
• Sony a7C II, a7C R # 71481 (not compatible with DLM/A Housing # 69124)
• Sony a9 III # 71482
• Canon EOS R # 71760
• Canon EOS RP # 71762
• Canon EOS R5 # 71764 or 73764
• Canon EOS R6, R6 II # 71766 or 71768

* The Nikon Z8 requires the Right-Angle USB-C Adapter # 46009 due to limited clearance. The camera separates charging and data transfer into two different USB ports. For this reason, the bulkhead can only be used for charging OR data transfer, not both simultaneously.

** A modification is available for housings below serial number 78668. The Sony a9 camera is not compatible with this bulkhead as it does not feature a USB-C port.

This bulkhead is not compatible with Ikelite 200DL Underwater Housings for DSLR cameras or 200DLM Underwater Housings due to spatial limitations. Compatibility is only confirmed with the models listed above.

Spatial Requirements

• Fits into an M16 threaded accessory port.

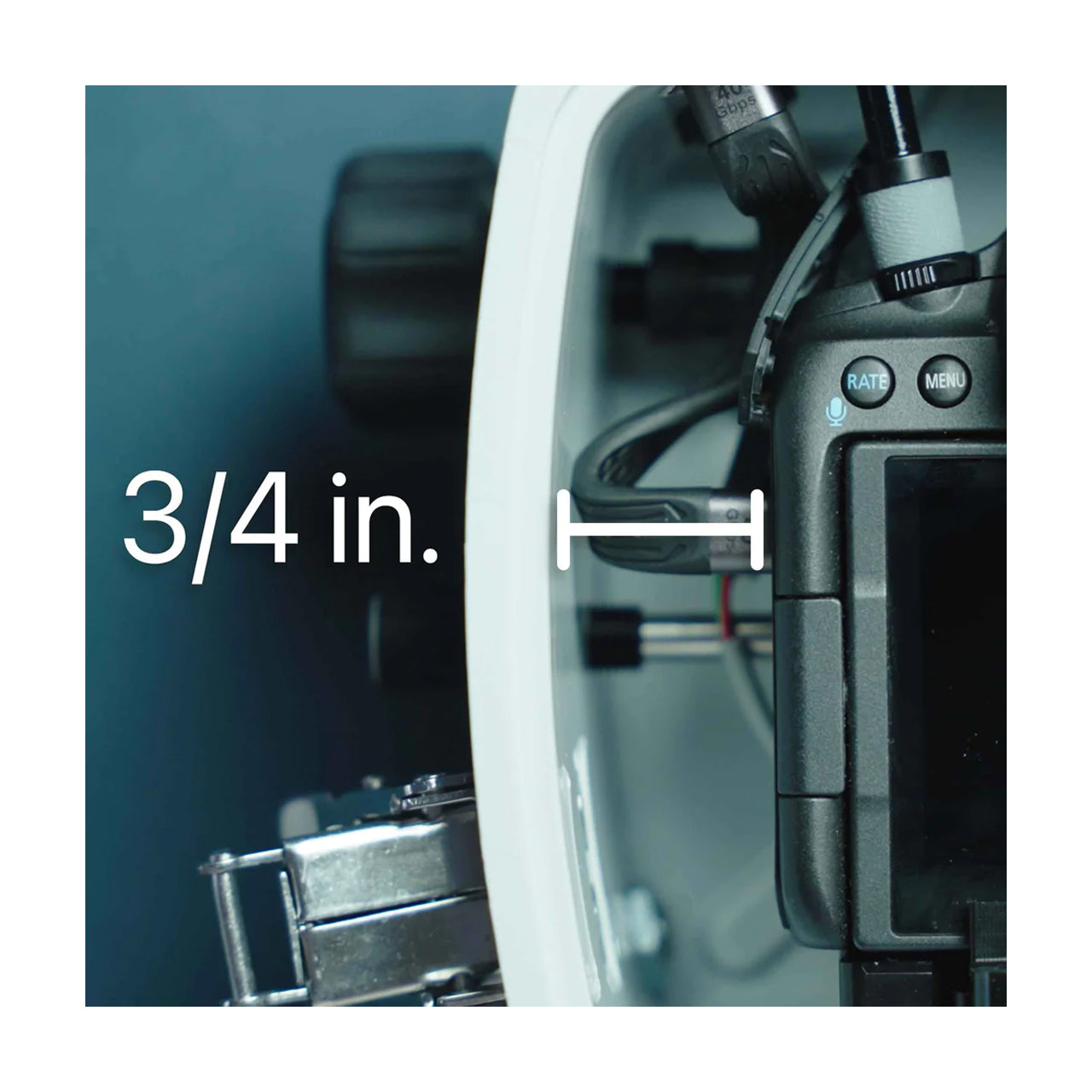

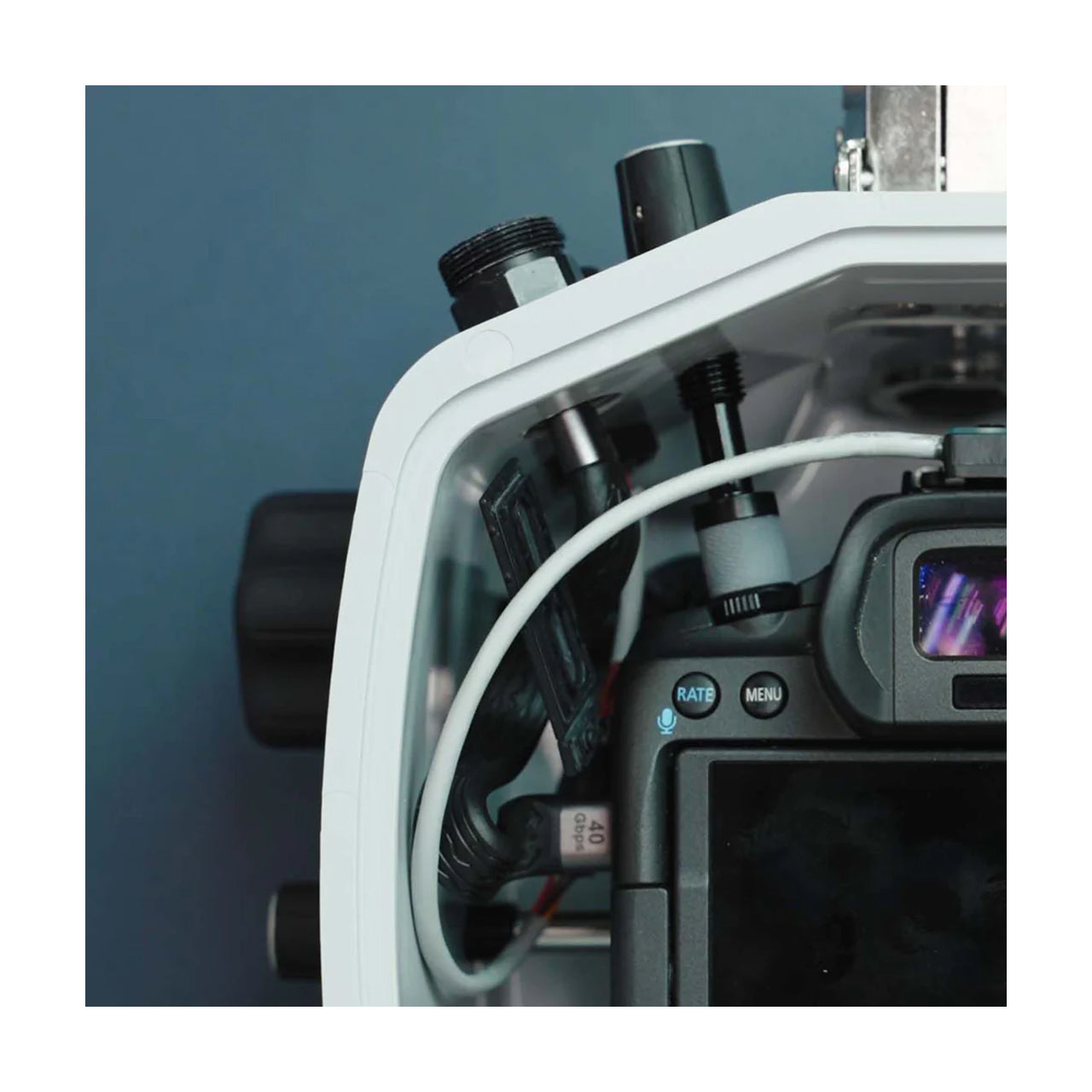

• Housings must have a minimum of 3/4" free space between the USB-C port on the camera and the inside left of the housing (viewed from the back).

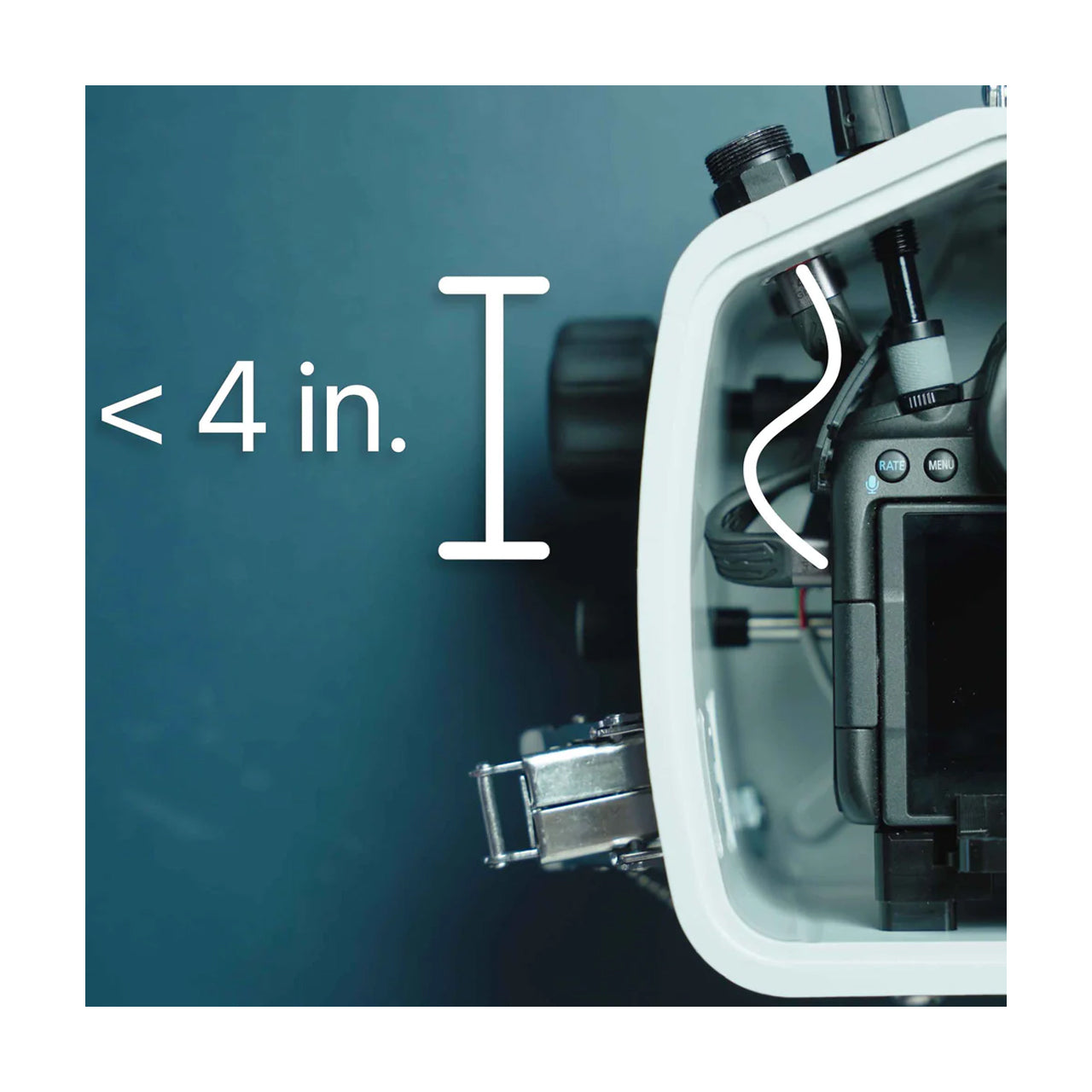

• Housings must have a maximum of 4" between the USB-C port on the camera and the inside bottom of the M16 port.

Refer to the product photos for spacing indicators.

In the Box

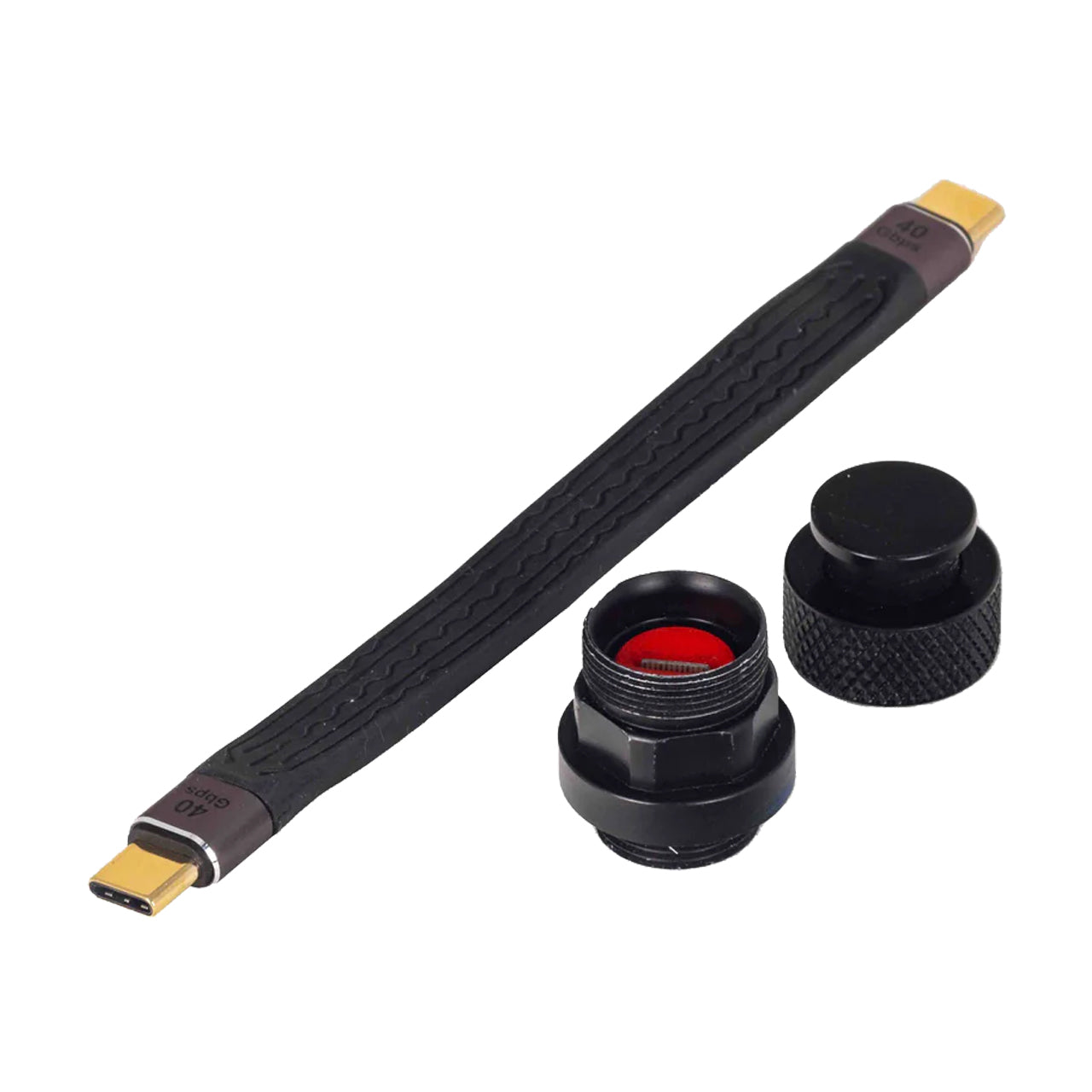

• USB-C Bulkhead
• Hyper-Flex USB-C to USB-C 40Gbps Cable
• Silicone Lubricant 1cc Tube
